PLANT ANATOMY LAB I

EXERCISE SHEET

THE COMPOUND AND DISSECTING MICROSCOPES

You must first unlock your electronic exercise sheets before attempting to save them.  Do this by using Explorer to find c:ANATOMY/Ch1_Microscopy/lab1exercise.html.  Right click on the html file, Select "Properties", then Deselect the radio button to the left of Read-only.  You will have to follow this procedure for each of your electronic exercise sheets, else you will get an error message when you try to save them.

Use Netscape Composer to complete the exercise sheet - Click on File, then Edit Page.

Make sure you save your changes by replacing the existing file, (Click on File, then Save)  else all will be lost!

NAME _____________________________.
(41 points)

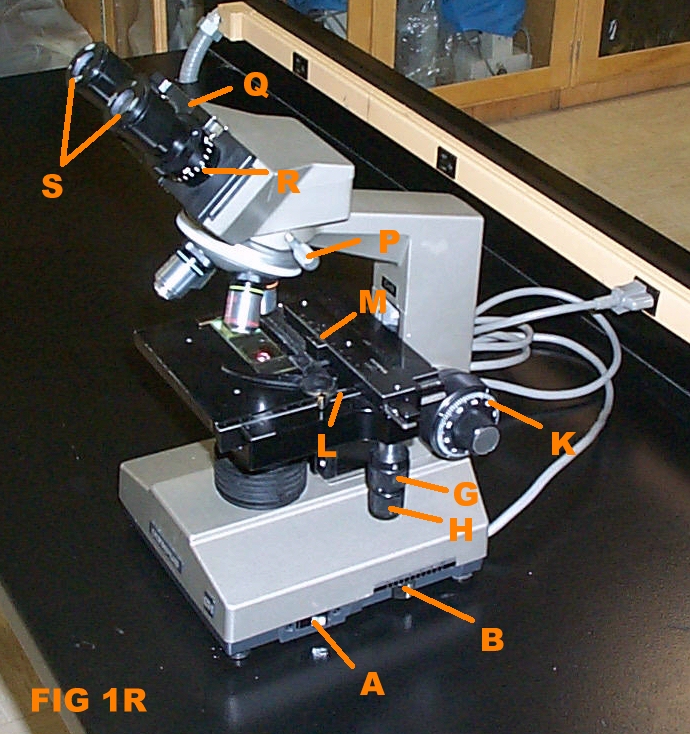

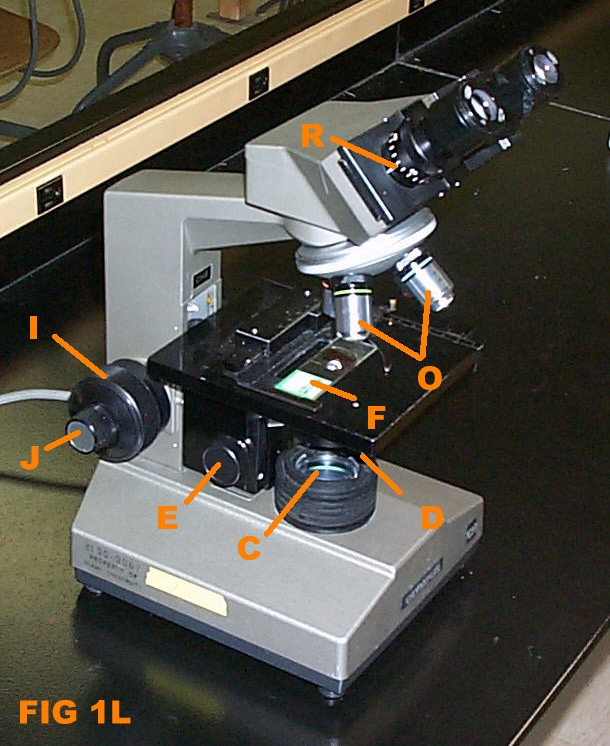

1.  The following are the names for the major components of my compound light microscope illustrated in Figures 1R and 1L. (18 points)

MAJOR COMPOUND LIGHT MICROSCOPE COMPONENTS
A. B.
C. D.
E. F.
G. H.
I. J.
K. L.
M.
O. P.
Q. R.
S.


2.  The Kohler illumination procedure is necessary because (2 points)


3.  Each unit on my microscopes mechanical stage micrometer is equal to _____ mm. (1 point)

4.  Each unit on my microscopes fine focus scale is equal to _____ mm. (1 point)

5.  I have determined the tabular data below for my microscope with serial number _________________. (12 points)



OBJECTIVE
FIELD OF VIEW
NUMERICAL APERTURE
RESOLUTION
DEPTH OF FIELD
10X



40X



100X

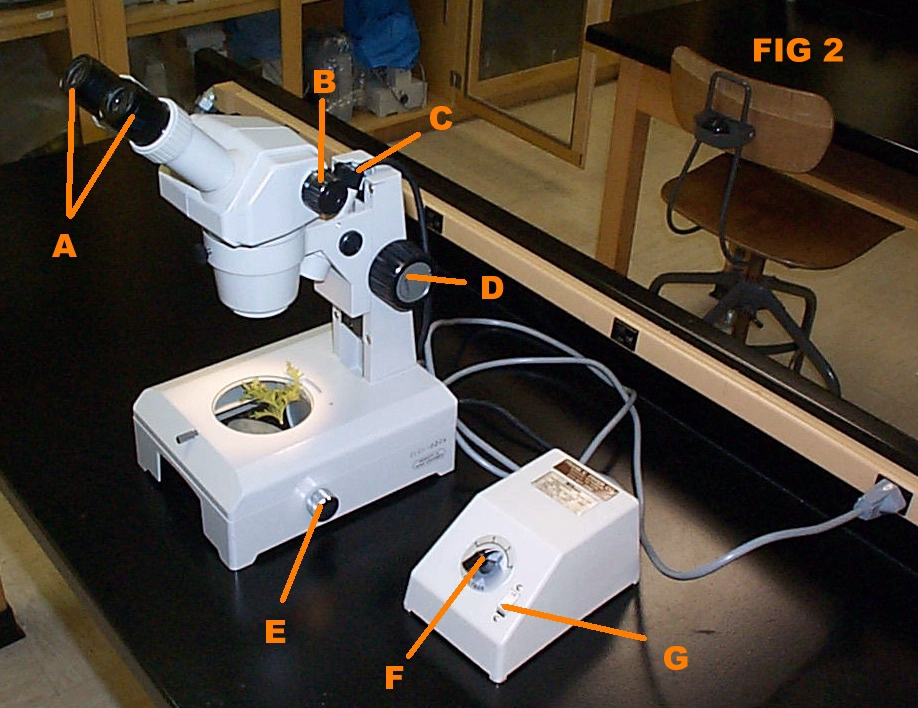

6.  The following are the names for the major components of my dissecting microscope illustrated in Figure 2. (7 points)

DISSECTING MICROSCOPE COMPONENTS
A.
B.
C.
D.
E.
F.
G.
